Product Description

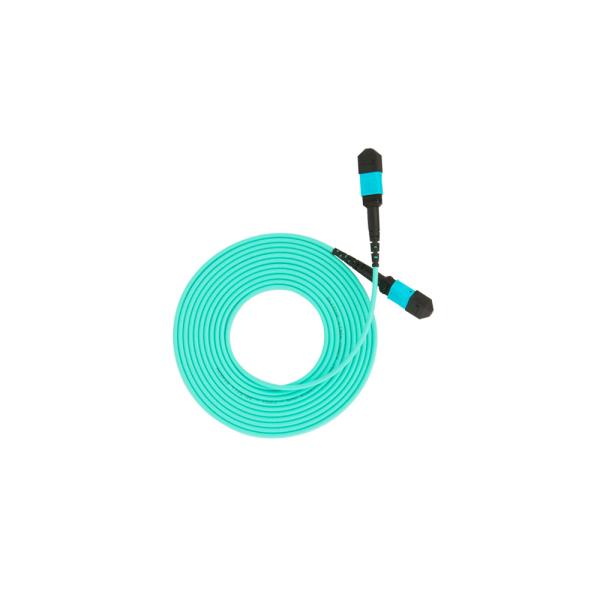

12 core MPO / MTP male to male fiber optic Cable OM3-300 50/125 patchcord
- 【High Speed and High Density】 MPO to MPO Patch Cable, (MPO FEMALE Connector without PIN). Low insertion loss and back reflection loss process
- 【TYPE B & IEEE802BM】MMF(50/125um), OM3 10G standard, LSZH sheet, 8-core fibers cable, constructed with TYPE B ( 1 to 12)
- 【High-performance for Your Datacenter】IL at 850nm 25 Db; Common configuration for connecting MPO / MTP cassettes and QSFP+ transceivers
- 【No Doubt About Quality】High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
- 【Better Get It Here】The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies
Technical Parameter
| Item | Technical Parameters |
| Connector | MPO (F or M) | MPO (F or M) |
| Operation Temperature | -40°C ~ +80°C |
| Storage Temperature | -40°C ~ +85°C |
| Insertion Loss | SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
| Return Loss | SM:≥60dB; MM:≥35dB |
| The MPO end type | Male: with guide pin; Female: without guide pin |
| Fiber count | 8,12&24 MT fiber |
| Connector type of the other end | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 |
| Fiber mode | Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable |
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.
Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.
Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.
Using temperature
-40° ~ +80°
Application :
- Testing equipment
- FTTX+LAN
- Optical fiber CATV
- Optical communication system
- Telecommunication
Pakcing :
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
Delivery :
We can delivery it by air and by sea . it is according to your quantity and requirements .
Payment :
Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .
Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR
More products :
We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us
